Mechanical Vapor Recompression Energy-Saving Distillation Technology

Main Advantages and Characteristics:

1.Wide Temperature Difference Range: Applicable to distillation systems with a temperature difference within 50°C between the top and bottom of the column.

2.Significant Energy Saving: The heat exchange is carried out between the heat exchanger and the top steam of the tower. The resulting clean water vapor is compressed by the compressor and then returned to the bottom of the tower for use, thereby saving a significant amount of steam consumption and achieving remarkable energy-saving effects.Saves 50-80% steam consumption compared to traditional distillation for methanol, ethanol, and ammonia purification.

3.High Safety Performance: Uses indirect heat exchange to prevent light components or corrosive gases from entering the compressor.

4.Good System Stability: Equipped with an intelligent control system for real-time parameter adjustment. Keep the distillation process in the best condition all the time. Enhances the flexibility of production, enabling it to adapt to various production conditions, strengthens the stability of the system, reducing the decline in product quality and the occurrence of production accidents caused by operational fluctuations.

Patent Portfolio of MVR Energy-saving Distillation Technology: Ammonia Water MVR Stripping System and Stripping Method (ZL202111541320.4); Ammonia Distillation System for Improving Liquid Ammonia Purity and Control Method (CN202410255492.2).

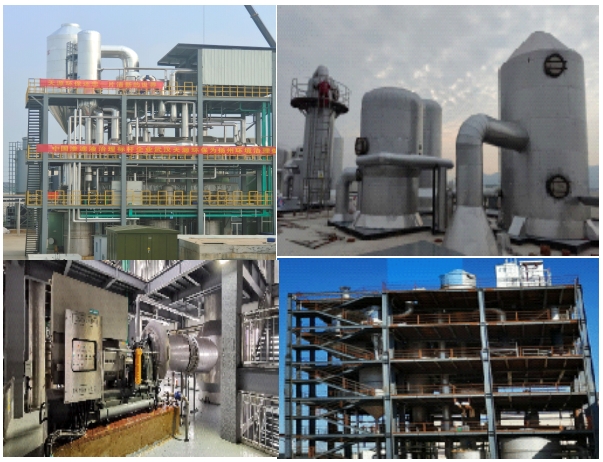

Customer Cases:

1.Hebei Chemical's 4 m³/h MVR ethanol distillation system

Energy Consumption per Ton of Treatment: Steam 5 kg、electricity 70 KW、circulating water 17.5 tons.

55% energy saving compared to steam distillation.

2.Dongying Pharmaceutical Factory's 14-ton/hour 20% methanol low-temperature distillation system

Heat-sensitive materials, distillation temperature <60°C.

Energy Consumption per Ton of Treatment: Steam 17 kg、 electricity 57 KW、circulating water 14 tons, chilled water 1.4 tons.

55% energy saving compared to steam distillation.

3.Jiangxi Battery Enterprise's 139T/h MVR stripping tower for ammonia recovery

Annual revenue: ~20 million RMB.

Energy Consumption per Ton of Treatment: Steam 20 kg, electricity 12 kW, circulating water 5.5 tons.

50% energy saving compared to steam distillation.
